When your oven suddenly refuses to turn on or stops heating, the first thought that might run through your head is: “Great, it’s broken… and probably expensive to fix.”
But here’s the secret many people don’t realize—sometimes it’s just a blown fuse. And yes, ovens do have fuses, but finding them can feel like a scavenger hunt unless you know exactly where to look.
1. Why Your Oven Has A Fuse In The First Place
Before hunting for the fuse, let’s clear up why it exists. A fuse is a safety device that prevents damage to your oven when there’s an electrical overload, short circuit, or surge.
According to the U.S. Fire Administration, over 24,000 house fires each year are caused by cooking appliances. Many of these start because of electrical faults. That little fuse in your oven? It’s one of the frontline defenders against bigger disasters.
From a personal standpoint, I once had an oven that suddenly refused to turn on during a family gathering (yes, right in the middle of baking). Instead of panicking, I checked the fuse, and sure enough, it had blown. A quick replacement saved me from calling a technician and paying $150 for what turned out to be a $6 part.
2. The Most Common Location Of Oven Fuses
So, where do manufacturers hide these little protectors? Most ovens have thermal fuses or circuit fuses, and their placement depends on the brand and model. But there are a few common hiding spots:
- Behind the control panel – Many ovens tuck the fuse behind the electronic control board. You’ll need to remove the top or back panel to access it.
- Near the power cord entry – Some ovens put a fuse close to where the power cord connects inside the back of the appliance.

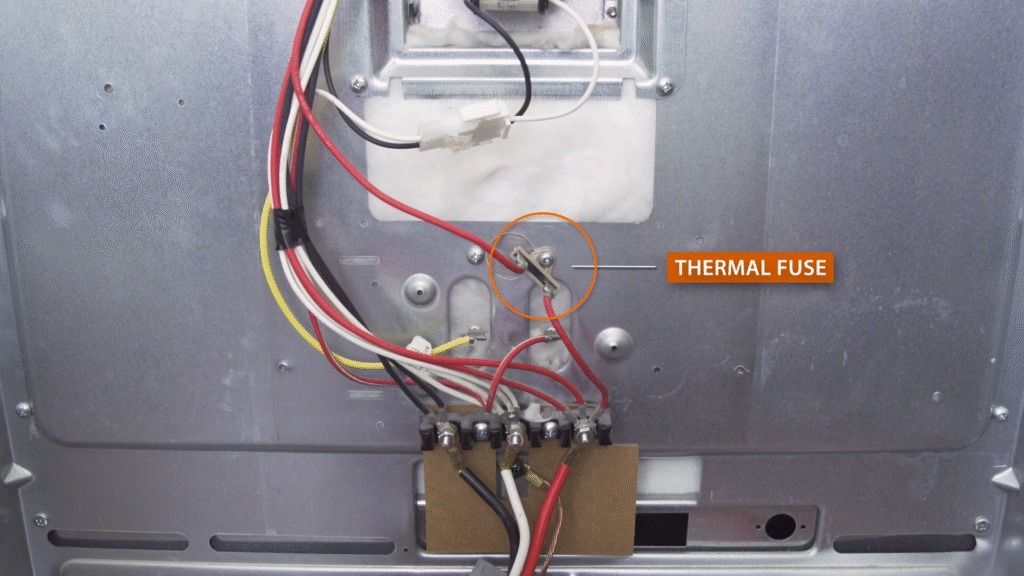

- Inside the oven cavity (behind the rear panel) – This is especially common for thermal fuses that monitor temperature and prevent overheating.
- Near heating elements – In certain models, you may find a fuse right by the bake or broil elements.
On average, about 70% of oven models hide the main fuse near the control panel or rear access panel. If you’re unsure, checking your oven’s manual is the quickest way to locate it.
3. Electric Ovens vs. Gas Ovens – The Fuse Difference
If you’re working with an electric oven, it almost always has one or more fuses inside. These fuses protect electronic controls, heating elements, and safety circuits.
On the other hand, gas ovens may or may not have internal fuses, since they rely on gas ignition systems. However, many gas ovens with digital displays or electric ignition still include a fuse to protect the control board.
Here’s a quick breakdown:
- Electric ovens – Multiple fuses possible (control board, thermal fuses).
- Gas ovens – Usually 1 fuse, typically near the control or ignition module.
If your gas oven won’t ignite, don’t assume it’s only a gas issue—the fuse might be silently sitting there, blown, waiting for attention.
4. How To Access The Fuse In Your Oven
Now comes the part where curiosity meets caution. Accessing an oven fuse is not rocket science, but it requires a little patience and the right steps.
- Unplug the oven or switch off the breaker. Never skip this—ovens run on 240 volts, which can be dangerous.
- Pull the oven away from the wall. You’ll need space to access the back or sides.
- Locate the access panel. Usually, it’s a metal cover on the back or top. Remove it with a screwdriver.
- Look for a small cylindrical or rectangular component. Fuses often have wires connected on both ends and might look like a small tube.
- Check near the control board or wiring harness. Most fuses hide in these areas.
Here’s a tip I learned the hard way: take a photo of the wiring before touching anything. Trust me, it saves you from the “Where did this wire go again?” nightmare later.
5. How To Tell If Your Oven Fuse Is Blown
Spotting a blown fuse isn’t always obvious with the naked eye. Some fuses will look darkened or burned out, but many look perfectly fine until tested.
Here’s how to check it properly:
- Visual check – Look for burn marks or a broken wire inside the fuse.

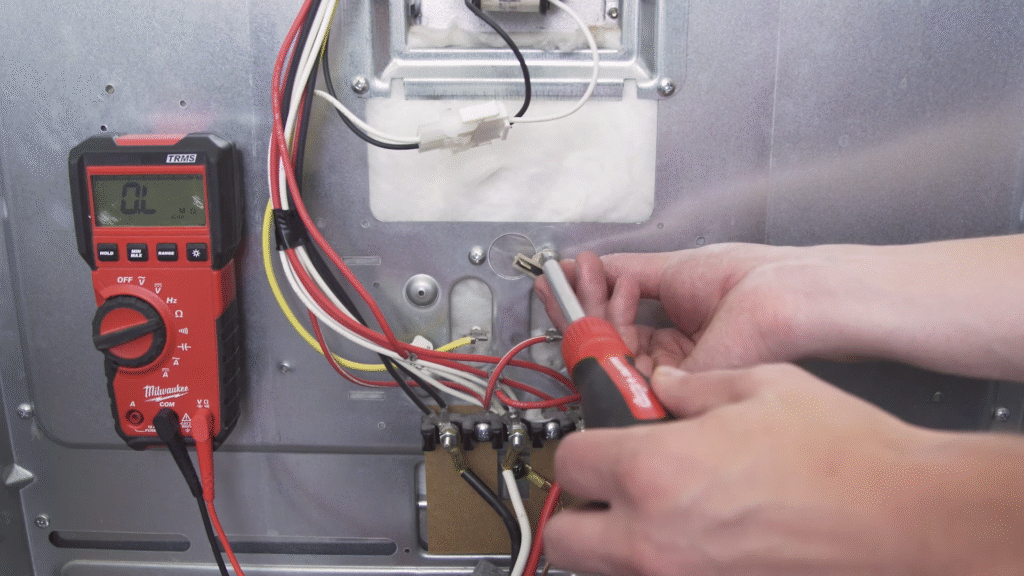

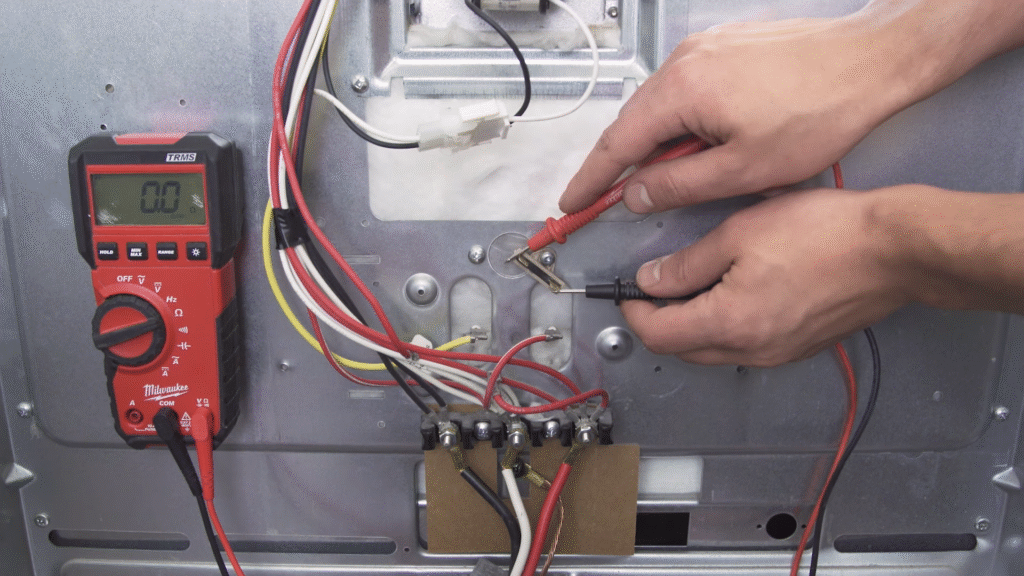

- Continuity test with a multimeter – Set the multimeter to continuity mode. Touch both ends of the fuse with the probes. If you hear a beep, the fuse is good. If it’s silent, the fuse is blown.
According to appliance repair data, over 30% of ovens that won’t power on are due to a blown fuse or tripped breaker. That’s a big percentage for such a small part.
6. Replacing An Oven Fuse
Replacing an oven fuse is usually straightforward:
- Remove the old fuse – Carefully disconnect it from the clips or wires.
- Get the correct replacement – Match the fuse rating exactly (usually listed in amps and volts). Using the wrong fuse is like putting the wrong size battery in—it won’t work, and it could damage your oven.
- Install the new fuse – Clip or screw it back into place.
- Reassemble and test – Put the panels back, plug the oven in, and test it.
Most replacement fuses cost between $5 and $20, far cheaper than calling a technician.
7. Why Oven Fuses Blow In The First Place
Fuses don’t just blow for fun—they’re reacting to something. Common causes include:
- Power surges from the electrical grid.
- Faulty heating elements drawing too much current.
- Worn-out wiring insulation causing shorts.
- Overheating issues that trigger thermal fuses.
In my own kitchen, the culprit turned out to be a failing bake element that kept tripping the fuse. Replacing the fuse worked for a day, but it blew again until I fixed the real issue. Lesson learned: always check why it blew, not just replace it.
8. When To Call A Professional
While replacing a fuse is manageable, sometimes it’s best to bring in an expert. Call a technician if:
- The new fuse blows again within days.
- You notice burning smells or melted wires.
- The oven still doesn’t power on even with a new fuse.
- You’re uncomfortable working with electrical parts.
According to HomeAdvisor, average oven repair costs range from $100 to $400, but simple fuse replacements usually sit at the lower end. Still, if repeated fuses blow, you’re likely dealing with a bigger issue like a bad control board.
9. Tips To Prevent Future Fuse Problems
Nobody wants to play fuse detective every other month. Here are a few tips to reduce the chances:
- Use a surge protector if your oven plugs into a standard outlet.
- Inspect the power cord for wear or damage.
- Avoid overloading circuits—don’t run a microwave and oven on the same breaker if possible.
- Keep vents clean so your oven doesn’t overheat.
Preventive steps save time and frustration. Think of them as giving your oven a little “insurance policy.”
10. Final Thoughts On Finding Your Oven Fuse
So, where is the fuse in your oven? Chances are it’s hiding behind the control panel or rear access panel, waiting quietly until called into action. Whether you’re working with an electric or gas oven, the process of finding, testing, and replacing the fuse is more manageable than it looks at first.
The key is to approach it step by step, keep safety first, and remember that the fuse is only part of the story. If it keeps blowing, the oven is trying to tell you something bigger is wrong.
I’ll be honest—figuring this out myself the first time felt like a victory. And the money I saved skipping a service call? That went straight into a Friday pizza night. That’s the beauty of knowing your way around your own appliances.
Conclusion
The fuse in your oven might be small, but it plays a mighty role in protecting your appliance. Typically located behind the control panel or near the back access area, it’s the first thing you should check if your oven suddenly stops working. By learning how to locate, test, and replace it, you’ll save yourself time, stress, and often a good chunk of money.
Don’t forget: if the fuse keeps blowing, it’s a sign of a deeper issue—not just the fuse itself. But once you know where it is and how it works, you’ll never feel helpless when your oven decides to go silent again.
FAQs
1. Where is the fuse in my oven located?
Most oven fuses are located behind the control panel or back access panel, near the control board or wiring harness.
2. How do I know if my oven fuse is blown?
Use a multimeter to test for continuity. If the meter doesn’t beep, the fuse is blown. Some may also show visible burn marks.
3. Can I replace an oven fuse myself?
Yes, as long as you unplug the oven first and use the correct replacement fuse. It’s usually a straightforward task.
4. Why does my oven fuse keep blowing?
Frequent fuse failures often point to underlying issues such as a bad heating element, wiring fault, or control board problem.
5. How much does it cost to replace an oven fuse?
Most replacement fuses cost between $5 and $20, making it one of the cheapest oven repairs you can do yourself.
