Where Are the Pipes in a Bathroom?

When you step into a bathroom, you usually think about relaxing showers, brushing your teeth, or maybe hiding from the world for five minutes.

What you don’t usually think about is the network of pipes snaking behind the walls and floors, silently doing all the dirty work.

But here’s the thing: knowing where the pipes in a bathroom are is like having the cheat codes to your own home.

1. The Big Picture: Understanding Bathroom Plumbing Systems

A bathroom is basically a stage where three major acts are happening at once: water supply, water distribution, and drainage.

Supply lines bring fresh water into your bathroom under pressure.
Drainage pipes carry wastewater away using gravity.
Vent pipes ensure that the whole system doesn’t choke or smell like a swamp.

When I first opened the wall in my old bathroom during a renovation, it felt like peeling back the curtain at a theater. I expected chaos but found a neat set of vertical and horizontal pipes working in sync, like an orchestra.

According to the U.S. Environmental Protection Agency, the average American family uses 300 gallons of water per day, with about 70 gallons dedicated to bathroom activities like flushing, bathing, and handwashing. That’s a lot of traffic moving through those hidden pipes.

2. Where Are the Water Supply Pipes Located?

Let’s start with the good stuff: fresh water supply lines. These pipes are usually made of copper, PEX, or CPVC and are much smaller than drains.

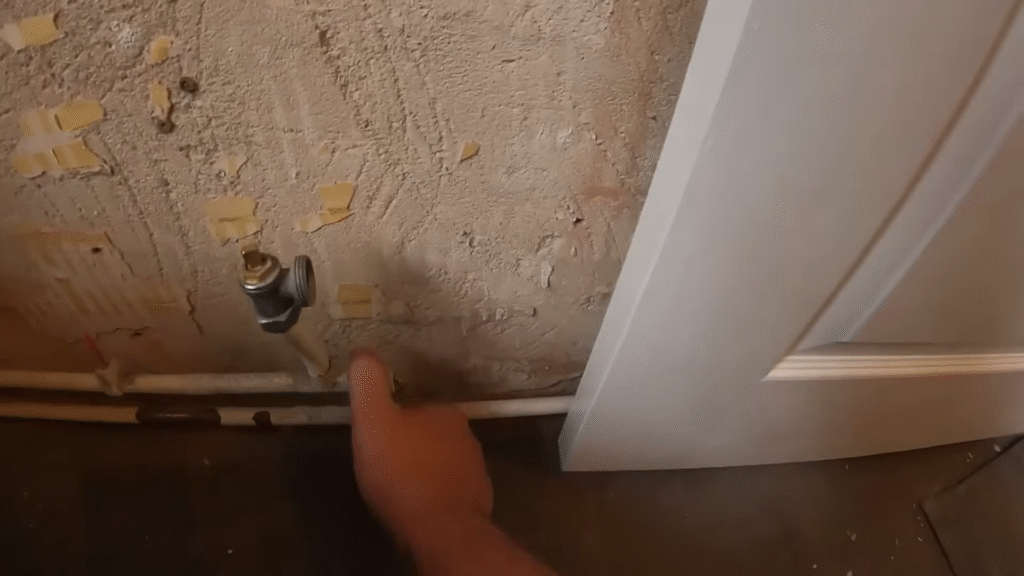

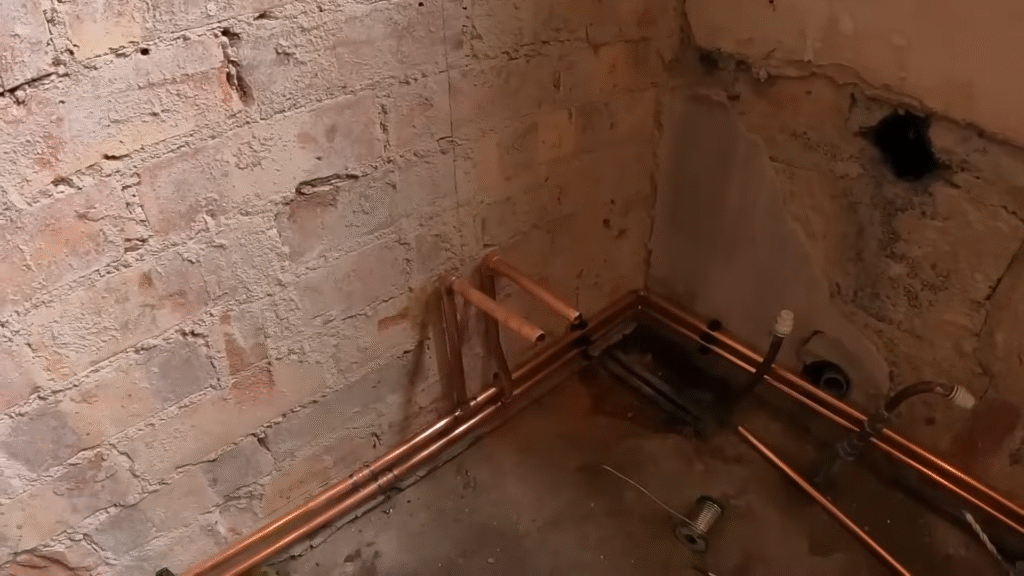

Behind the walls: Most bathroom supply pipes run vertically inside stud walls. If you open drywall behind a sink, shower, or toilet, you’ll likely find hot and cold lines running side by side.

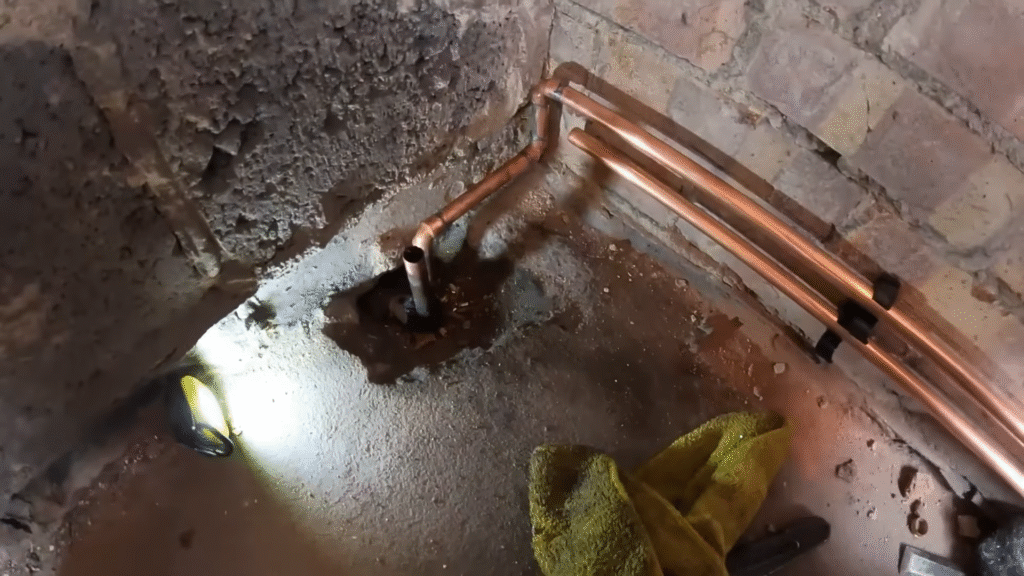

Under the floor: In homes with basements or crawl spaces, supply lines often snake upward from below, feeding fixtures. In slab foundations, pipes are embedded right in the concrete.
Near fixtures: Each fixture has shut-off valves close by—under the sink, behind the toilet, or near the tub. These valves are your bathroom’s “emergency exits” when something goes wrong.

Personal note: The first time I replaced a bathroom faucet, I learned the hard way that not all shut-off valves actually work. Mine was frozen solid. Cue me running down to the main water shut-off like it was an Olympic sprint.

3. Hot vs. Cold Water Line Placement

Bathrooms have two supply lines—hot and cold—and their positioning is surprisingly standardized.

Sinks: Cold on the right, hot on the left. Always. If yours is reversed, the installer either didn’t know or didn’t care.
Showers and tubs: Both lines rise vertically to the mixing valve. From there, a single pipe feeds the showerhead or tub spout.
Toilets: Almost always cold water only, coming from the wall or floor just below the tank.

Think of it like a highway system: hot and cold are two lanes merging at certain exits, and you control traffic with your faucet handles.

4. Where Are the Drain Pipes in a Bathroom?

This is where things get a bit messier—literally. Drain pipes are much larger (1.5 to 4 inches wide) and rely on gravity. That means their placement isn’t as flexible as supply lines.

Under the floor: Most drains slope downward under the floor, heading toward the main soil stack or sewer line.
Behind fixtures: Every sink, tub, and shower has a trap (that U-shaped bend) connected to a vertical or horizontal drain line in the wall or floor.

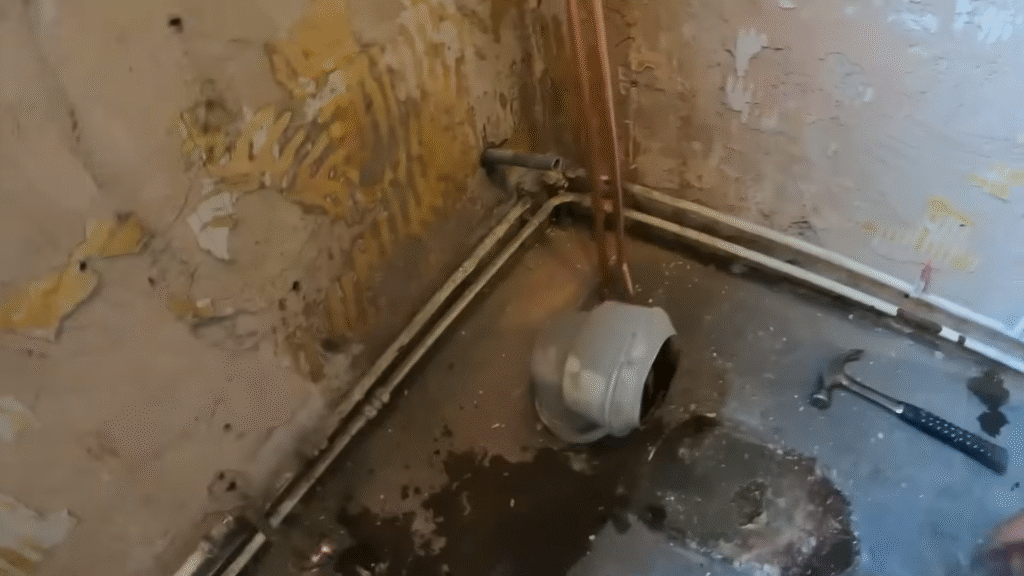

Toilet drains: Toilets connect to the largest bathroom pipe—usually a 3–4 inch line straight down into the floor, tying into the main stack.

When I once tried to unclog my shower drain with a cheap snake tool, I discovered just how many twists and turns those pipes take before hitting the main stack. It felt like fishing in a cave.

5. The Role of Vent Pipes

Here’s a secret most homeowners don’t know: your bathroom pipes would not function without vents.

Vent pipes don’t carry water at all—they carry air. They allow sewer gases to escape and keep the pressure balanced so drains can flow smoothly. Without vents, every flush or drain would create suction, siphoning water out of traps and leaving your bathroom smelling like a horror movie.

You’ll usually find vent pipes:

Running vertically inside walls and connecting to the roof.
Tied into drain lines near sinks, toilets, and showers.

So yes, that mysterious little pipe sticking out of your roof? That’s not decoration—it’s your plumbing system’s breathing straw.

6. Pipes for the Sink

The sink is the most exposed and therefore the easiest to understand.

Supply lines: Two flexible hoses (hot and cold) usually run from shut-off valves under the vanity.
Drain: A P-trap connects the sink drain to the wall, which then connects to a larger waste line.
Vent: Located just behind the wall, usually joining the main vent stack.

Fun fact: The P-trap isn’t just to catch jewelry when you drop your ring—it’s to hold water and block sewer gases. Think of it as your bathroom’s nose plug.

7. Pipes for the Toilet

The toilet has one of the simplest yet most important setups.

Supply: A single cold water line feeds into the tank through a shut-off valve.
Drain: A large 3–4 inch waste pipe connects directly beneath, sealed with a wax ring to prevent leaks.
Vent: Connected to the stack behind the wall to keep flushes smooth.

Stats show toilets account for nearly 30% of indoor water use in the average home, which makes them the single biggest water user in the bathroom. That’s why knowing this setup is crucial for both efficiency and repairs.

8. Pipes for the Bathtub and Shower

This is where the plumbing gets slightly more complicated.

Supply: Both hot and cold lines rise vertically to a mixing valve. From there, one pipe goes up to the showerhead and another down to the tub spout.
Drain: A 1.5–2 inch pipe slopes downward from the tub or shower pan, leading into the main waste line.
Vent: Typically tied into the same vent system as the sink or toilet.

Ever wondered why shower drains are so prone to clogging? Because those 1.5–2 inch pipes are much smaller than the toilet’s 3–4 inch drain. Add in hair, soap, and hard water minerals, and you’ve got a recipe for backups.

9. Hidden Spots Where Pipes Run

Beyond the obvious fixtures, bathroom pipes can also run through:

Ceilings: In multi-story homes, second-floor bathrooms often have supply and drain lines running between floor joists.
Chases: Some bathrooms have vertical “pipe chases” (hidden cavities) to route pipes between floors.
Closets: Occasionally, pipes are hidden inside nearby closets or utility walls.

When I remodeled my first bathroom, I discovered a pipe chase cleverly hidden inside a linen closet. At first, I thought it was wasted space, but later I realized it was pure genius for future repairs.

10. Why Pipe Location Matters for Homeowners

Knowing where pipes are in a bathroom isn’t just trivia—it’s protection.

For renovations: If you plan to move a sink or shower, knowing pipe routes saves thousands in labor.
For emergencies: When a pipe bursts, you’ll waste less time hunting and more time fixing.
For inspections: Spotting signs of leaks near typical pipe paths helps catch problems early.

According to the Insurance Information Institute, water damage is one of the most common causes of homeowners’ insurance claims, averaging over $12,500 per incident. That’s a very expensive surprise if you don’t know your pipe layout.

11. Common Mistakes Homeowners Make About Bathroom Pipes

Here are a few myths I’ve seen people believe:

“Pipes can go anywhere.” Wrong. Drain pipes need slope, and venting has strict rules.
“If it’s hidden, it doesn’t matter.” Hidden leaks cause the worst damage because they go undetected.
“I’ll just knock down this wall.” Demolishing blindly can land you with a geyser in your living room.

I once helped a friend patch drywall after he cut into what he thought was “just an empty wall.” Turns out it was the main vent stack. Let’s just say the smell made us abandon the project for the day.

12. Modern Materials and Bathroom Pipe Upgrades

Today’s bathrooms may hide pipes made of:

PEX: Flexible, color-coded red/blue, and resistant to freezing.
Copper: Durable, long-lasting, but pricier.
PVC/ABS: Used for drains, lightweight, and easy to install.
Cast iron: Common in older homes, heavy but excellent at noise reduction.

If you’re planning a remodel, upgrading from old galvanized pipes to PEX or copper is like trading a rusty old car for a reliable new one.

13. How to Find Bathroom Pipes Without Opening Walls

You don’t always need a sledgehammer to locate pipes. Try these methods:

Stud finders with pipe detection can sense metal and plastic.
Thermal cameras reveal hot water lines behind walls.
Blueprints or permits often show plumbing routes.
Listening carefully (turning on water and listening through walls) sometimes works in older homes.

I once used a cheap thermal camera attachment for my phone to trace hot water pipes in my bathroom wall. It felt like having superhero x-ray vision.

14. Signs Pipes Are Not Where They Should Be

If your bathroom was remodeled by amateurs, pipes may not follow standard routes. Signs include:

Faucet handles reversed (hot on right, cold on left).
Toilets or sinks far from vents, causing gurgling.
Extremely slow drains due to poor slope.

Bad plumbing isn’t just inconvenient—it can violate code and lower your home’s value.

15. Cost of Relocating Bathroom Pipes

Relocating pipes isn’t cheap, and costs vary based on layout:

Moving a sink: $500–$1,500
Moving a toilet: $1,500–$3,000 (because of larger drains)
Moving a shower or tub: $1,000–$2,500

These prices jump even higher if you’re dealing with slab foundations, since that means cutting into concrete.

Conclusion

So, where are the pipes in a bathroom? They’re everywhere and nowhere at once—tucked inside walls, floors, and ceilings, working quietly in the background. Supply lines bring water in, drains carry it away, and vents keep everything balanced. Sinks, toilets, showers, and tubs all have their own configurations, but they tie together in a neat system designed to keep your bathroom functional without you even noticing.

FAQs

1. How do I know if my bathroom pipes are leaking behind the wall?

Look for subtle clues like peeling paint, bubbling drywall, musty odors, or unexplained water stains. Another trick is to turn off all water fixtures and check your water meter—if it’s still moving, you probably have a hidden leak. In my old rental, I once traced a mysterious damp patch in the hallway back to a slow bathroom pipe leak, which saved the landlord from a much bigger disaster.

2. Can I move a toilet anywhere in the bathroom?

Not easily. Toilets need a large 3–4 inch drain pipe with the right slope and must be vented properly. Moving a toilet even a few feet can cost thousands because it often involves cutting concrete or rerouting major drains. If you’re remodeling, it’s always cheaper to keep the toilet in its original spot.

3. What size pipes are typically used in a bathroom?

Toilet drains: 3–4 inches
Sink drains: 1.25–1.5 inches
Shower/tub drains: 1.5–2 inches
Supply lines: 1/2 inch (sometimes 3/4 inch for main feeds)
These standard sizes ensure enough flow without clogs. If your drains are smaller than these, you’re looking at a code violation and constant backups.

4. Why does my sink gurgle after I flush the toilet?

That’s usually a venting problem. When a toilet flushes, it creates negative pressure in the drain line. If your sink isn’t properly vented, it sucks air (and sometimes water) through the trap, causing that gurgle. It’s your plumbing’s way of gasping for breath.

5. Should I replace old galvanized pipes in my bathroom?

Yes—if you have galvanized steel supply lines, it’s worth replacing them. Over time, galvanized pipes corrode inside, restricting water flow and eventually leaking. Modern homes use PEX or copper, which last longer and provide better water quality. Think of it like upgrading from dial-up internet to fiber optic—it’s a game changer.
