When it comes to plumbing lingo, you’d be surprised how many abbreviations get tossed around like candy at a parade—PVC, PEX, DWV, GPM, and yes, FD.

If you’ve stumbled upon this one while working on a project, reading a blueprint, or trying to make sense of what your plumber just muttered under his breath, don’t worry—you’re in the right place.

1. What Does FD Stand For in Plumbing?

A floor drain is that familiar little grated opening you’ve probably noticed in your basement, garage, commercial kitchen, or laundry room. It’s designed to collect excess water and direct it into the drainage system so it doesn’t pool on the floor and cause damage.

Think of an FD as the unsung hero of plumbing: it doesn’t look like much, but it saves you from flooded basements, ruined flooring, and smelly messes you definitely don’t want to clean up at midnight.

From a technical standpoint, an FD is typically connected to a trap (to prevent sewer gases from coming back up) and tied into the building’s drain-waste-vent system (DWV).

2. Why Floor Drains Are More Important Than You Think

Here’s a shocking stat: The average household water damage insurance claim in the U.S. costs over $11,000 (according to the Insurance Information Institute). And in commercial buildings, one unnoticed leak or flood can cause tens of thousands of dollars in repairs.

Now imagine you didn’t have a floor drain in place when your washing machine hose burst, or when that old water heater finally gave up on life. Where would the water go? Right—straight into your flooring, walls, and personal belongings.

A well-installed FD is like a silent insurance policy. It won’t prevent leaks from happening, but it’ll make sure when they do, water actually has somewhere to escape.

3. Where Do You Usually Find FDs?

FDs are strategically placed in areas where water accidents are most likely. You’ll usually find them in:

Basements – To catch leaks from water heaters, sump pumps, or foundation seepage.
Garages – For melting snow, rainwater runoff, or car washing.
Commercial kitchens – Health codes often require them to handle spills and cleaning water.
Laundry rooms – Because washing machines and water hookups can be unpredictable.
Public restrooms – Especially in high-traffic areas where cleanliness and water control are essential.

I once visited a friend’s restaurant where the floor drain in the kitchen got clogged. Within 15 minutes of running the dishwasher, the entire back area turned into a mini swimming pool. Lesson learned: never underestimate the power of a little FD.

4. How Does an FD Actually Work?

At its core, a floor drain is a funnel. But instead of catching rainwater like an outdoor gutter, it catches whatever water spills onto the floor and channels it downward.

Here’s how the setup typically looks:

The Grate – That’s the part you see. It prevents large debris from entering the system.
The Drain Body – The section right under the grate that collects water.
The Trap – A U-shaped bend filled with water that blocks sewer gases.
The Drain Line – The pipe that carries water away to the main sewer or storm drain system.

Think of it like this: If your home’s plumbing is a city, the FD is a small side street that still connects to the main highway.

5. Different Types of Floor Drains (FDs)

Not all FDs are the same. Depending on where they’re installed, they might be designed differently. Here are the main ones:

Standard Floor Drain – A simple grate over a drain, found in basements or laundry rooms.
Trench Drain – A long, narrow drain used in garages, driveways, or commercial kitchens.
Hub Drain – Connects directly to equipment like air conditioners or ice machines.
Indirect Waste Drain – Used in commercial settings where equipment can’t be directly tied to the sewer.

Each one has its own specialty. For example, trench drains are perfect for controlling large amounts of water in areas that slope, while standard floor drains handle small spills or leaks.

6. The Role of Traps in FDs

If you’ve ever smelled a rotten egg smell coming from a drain, you’ve experienced what happens when a trap dries out.

Every FD should have a trap primer or another way to keep water inside the trap. Why? Because without water sealing the trap, nasty sewer gases can creep back up into your living or working space.

According to plumbing codes, traps are mandatory for FDs to protect human health. Without them, you’re inviting methane, hydrogen sulfide, and other harmful gases right into your home.

7. Plumbing Codes and FDs

This isn’t just some optional piece of hardware—FDs are often required by building codes.

For instance:

The International Plumbing Code (IPC) requires floor drains in commercial kitchens, boiler rooms, and public restrooms.
Many local building codes mandate them in basements with water heaters.

Ignoring these requirements can lead to failed inspections or worse, expensive retrofits later on.

Pro tip: Always check with your local authority before renovating or building—FD requirements vary city by city.

8. Common Problems With Floor Drains

Like everything in plumbing, an FD isn’t immune to issues. The most common problems include:

Clogs – Hair, dirt, grease, and even mop strings love to get stuck in them.
Dry traps – If the drain isn’t used regularly, the water seal evaporates.
Slow draining – Often a sign of buildup in the pipes or poor installation slope.
Leaks – If the drain body cracks or isn’t properly sealed, water escapes into the flooring.

One time, my neighbor complained about a sewer smell in her basement. The culprit? A floor drain that hadn’t seen water in months. A quick bucket of water solved the problem instantly. Sometimes the fix is easier than you think.

9. How to Maintain an FD Properly

If you don’t want your FD to betray you when you need it most, a little maintenance goes a long way. Here are some insider tips:

Pour a bucket of water into it every month to keep the trap seal intact.
Use a trap primer if your FD is in an area you rarely use.
Clean the grate regularly to prevent buildup.
Snake or flush the drain line annually if it’s in a high-use area like a restaurant kitchen.

Remember: Your FD is like a smoke detector. You don’t notice it until you really need it. But by then, it might be too late if you haven’t maintained it.

10. FD vs Other Drains

You might be wondering—how is an FD different from other drains like a shower drain or sink drain?

The biggest difference is purpose.

A shower drain is designed for daily, predictable use.
A sink drain handles specific fixtures.
An FD is there as a safety measure to handle water when it’s not supposed to be there.

Think of it as the backup goalie in hockey—it doesn’t get much action most days, but when it does, you’ll be glad it’s there.

11. How to Install an FD

Installing an FD isn’t usually a DIY-friendly task, but here’s a simplified version of the process:

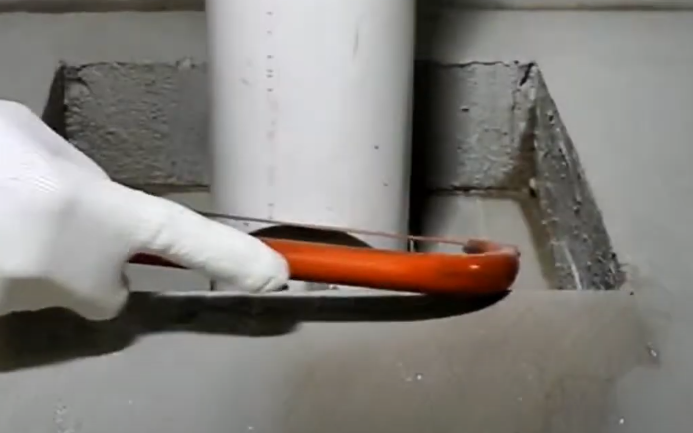

Cut into the floor slab where the drain will be placed.

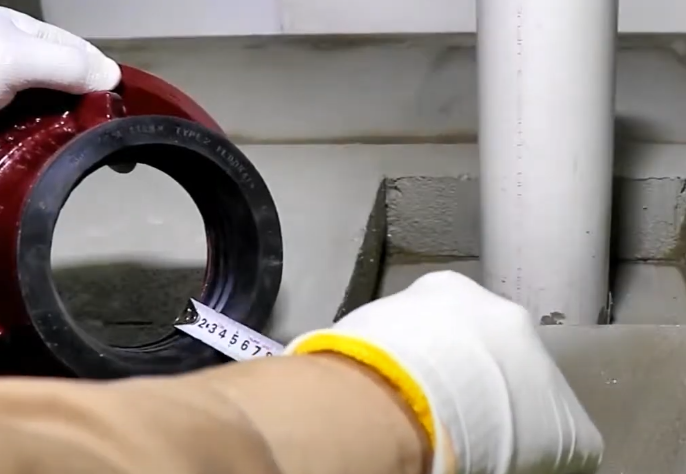

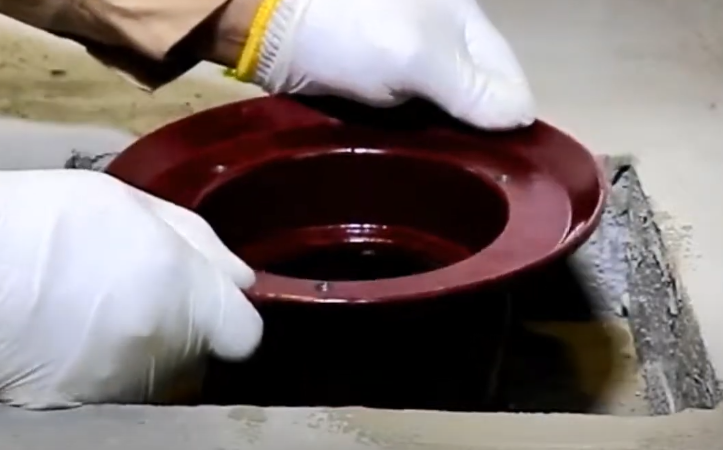

Connect the drain body to the plumbing system, ensuring it has a trap.
Slope the surrounding floor so water naturally flows toward it.
Seal the edges with concrete or floor finish.
Install the grate flush with the floor surface.

Most building codes require a ¼ inch per foot slope toward the drain to ensure proper flow. If you miss this detail, your FD is just an ornament.

12. Cost of Installing an FD

Let’s talk money. On average:

A basic residential FD installation costs between $500 and $1,500, depending on how much concrete needs to be cut and patched.
In commercial spaces, costs can soar to $3,000–$10,000, especially if trench drains are involved.

It might sound pricey, but when you compare it to the cost of water damage repairs ($11,000+ per incident), it’s a no-brainer investment.

13. Signs You Need an FD

Not sure if your home or building needs one? Look for these telltale signs:

You have a basement with water appliances (heater, washer, furnace).
Your garage or shop floor gets water runoff from cars or snow.
You live in an area with frequent flooding or heavy rains.
Your city inspector told you one is required (always a hint).

If you’ve ever had to mop up a “mini flood” more than once, that’s your house’s way of screaming: “Give me an FD already!”

14. Do All Homes Have FDs?

The short answer: No.

Older homes often skipped them, especially in areas where basements weren’t common. Newer construction, however, almost always includes them in basements and mechanical rooms.

If your home doesn’t have one, it’s worth considering an installation—especially if you’ve already had a close call with water damage.

15. The Future of FDs

Believe it or not, even floor drains are getting smarter. Some modern versions include:

Backflow preventers to stop sewage from flowing backward.
Smart sensors that send alerts if water is detected.
Trap primers that automatically add water when levels drop.

It’s not far-fetched to imagine that someday, your FD might text you saying: “Hey, I just saved your basement from a flood—maybe buy me a new grate as a thank you?”

Conclusion

An FD in plumbing means Floor Drain. It’s a small but mighty feature that prevents water damage, protects against sewer gases, and often keeps your home or business compliant with plumbing codes.

It may not be glamorous, but without it, you’d be wading through disasters—literally.

Here’s the takeaway:

If you already have FDs, maintain them with water and cleaning.
If you don’t, and you live in a water-prone area, seriously consider adding one.
And if you ever smell sewer gas, don’t panic—just check if your FD trap needs a little water.

At the end of the day, the FD is your floor’s best friend—a quiet guardian that saves you from water woes, one unnoticed trickle at a time.

FAQs

1. Is an FD the same as a floor sink?

Not exactly. A floor sink is similar but deeper, with tall sidewalls that allow indirect waste pipes (like from ice machines or AC units) to discharge above the rim without touching standing water.

A floor drain (FD), on the other hand, is usually flush with the floor, designed to catch water that spreads across the surface. Floor sinks are more common in commercial kitchens, labs, and restaurants, while FDs are often found in basements, garages, and laundry rooms.

2. How often should I pour water into my FD?

If your FD is in an area that doesn’t see much use (like a basement corner), you should pour a bucket of water every 3–4 weeks. This keeps the trap seal filled and prevents sewer gases from sneaking up into your living space. For even less hassle, you can install a trap primer that automatically keeps it wet whenever nearby fixtures are used.

3. Can a floor drain back up with sewage?

Unfortunately, yes. If the main sewer line gets clogged or overwhelmed during a heavy storm, sewage can push back into your FD. That’s why many modern floor drains include backflow preventers or check valves to stop reverse flow. If you live in an area prone to flooding, investing in one is far cheaper than cleaning up a sewage-soaked basement.

4. Do all basements need an FD?

Not all, but most should have one. If your basement has water appliances (washer, water heater, boiler, or furnace), a floor drain is strongly recommended—and in many areas, required by code.

Even if you don’t have appliances, basements can flood from foundation leaks, so an FD adds extra protection. If your home doesn’t have one and you’ve had water problems before, it’s worth installing.

5. What’s the difference between FD and cleanout?

Great question! A cleanout is a capped pipe opening that plumbers use to access the drain system for maintenance and unclogging. An FD (floor drain) is designed to capture water.

While they both connect to the drainage system, they serve totally different purposes—one is for removing water, the other is for giving plumbers access. Some FDs are actually built with cleanout access included, which makes them extra useful.
